A variable is always visible in Design mode. However, in Run mode or the Studio UI (end-user interface), variables can be hidden from the end user.
In some cases, you may want to show or hide a variable dynamically based on the document state or the values of other variables. This helps create a cleaner user experience by ensuring users only see relevant information.
This is where Visibility Conditions come into play.

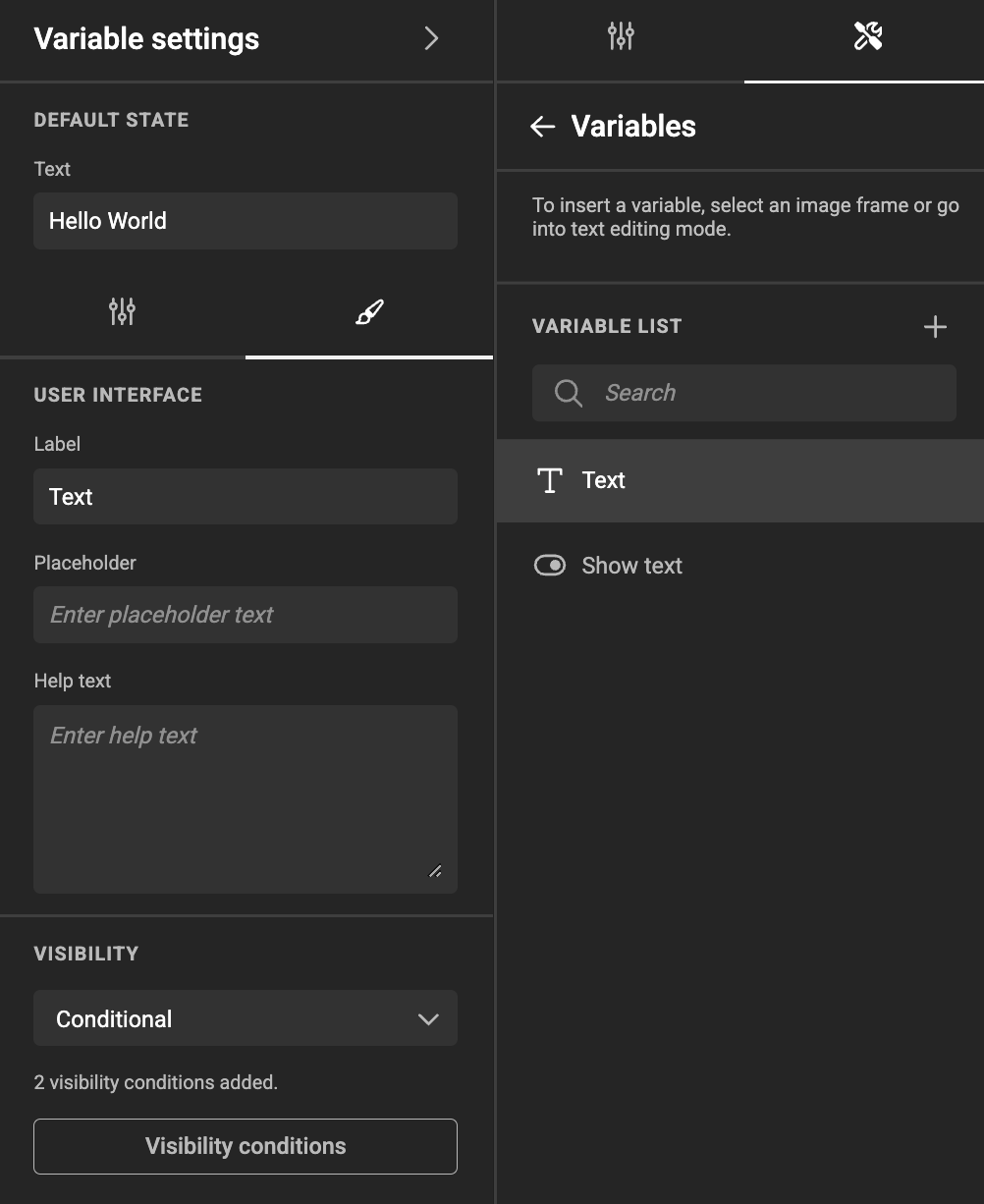

In the User Interface tab of a variable, you can define its visibility settings.

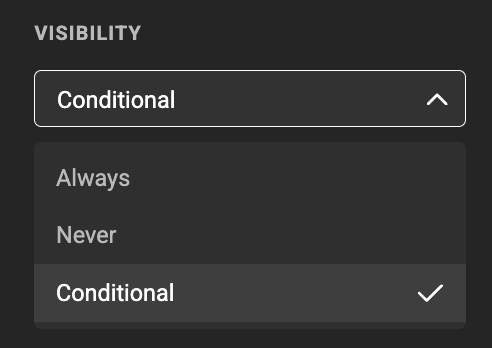

Three options are available:
- Always (default)
- Never
- Conditional
Conditional Visibility

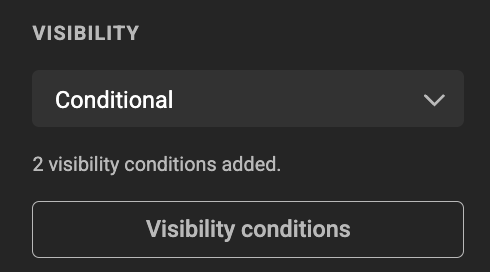

If you select Conditional, you can define the conditions under which the variable will be shown in the end-user interface.
You can add one or more conditions. All conditions must be met for the variable to be displayed.

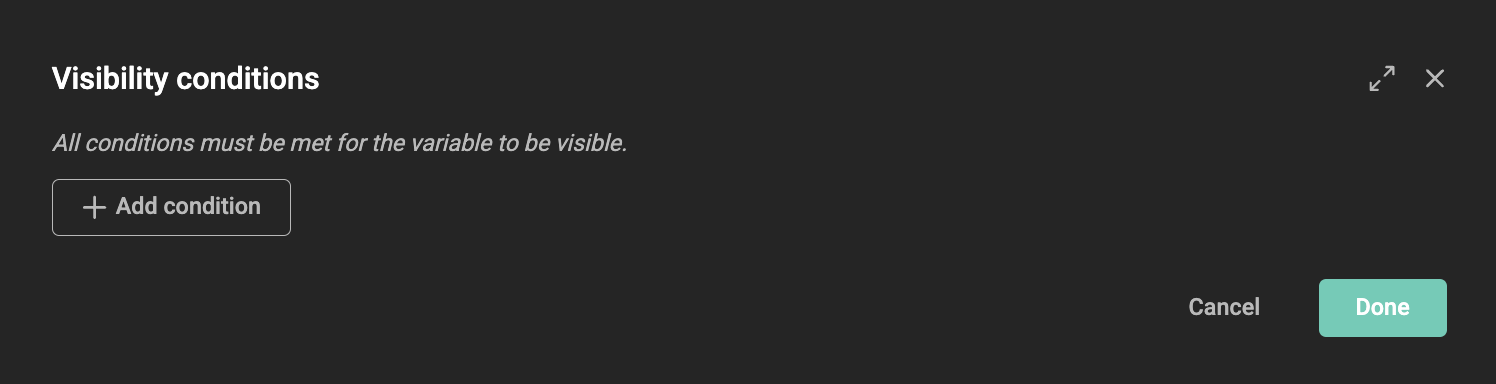

Click Visibility Conditions.

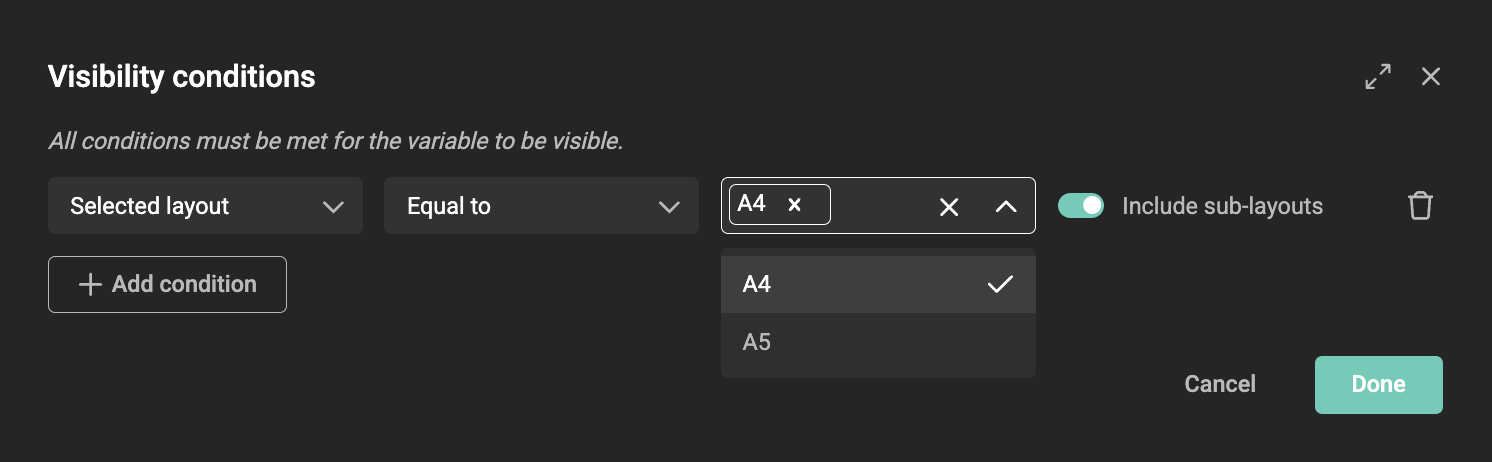

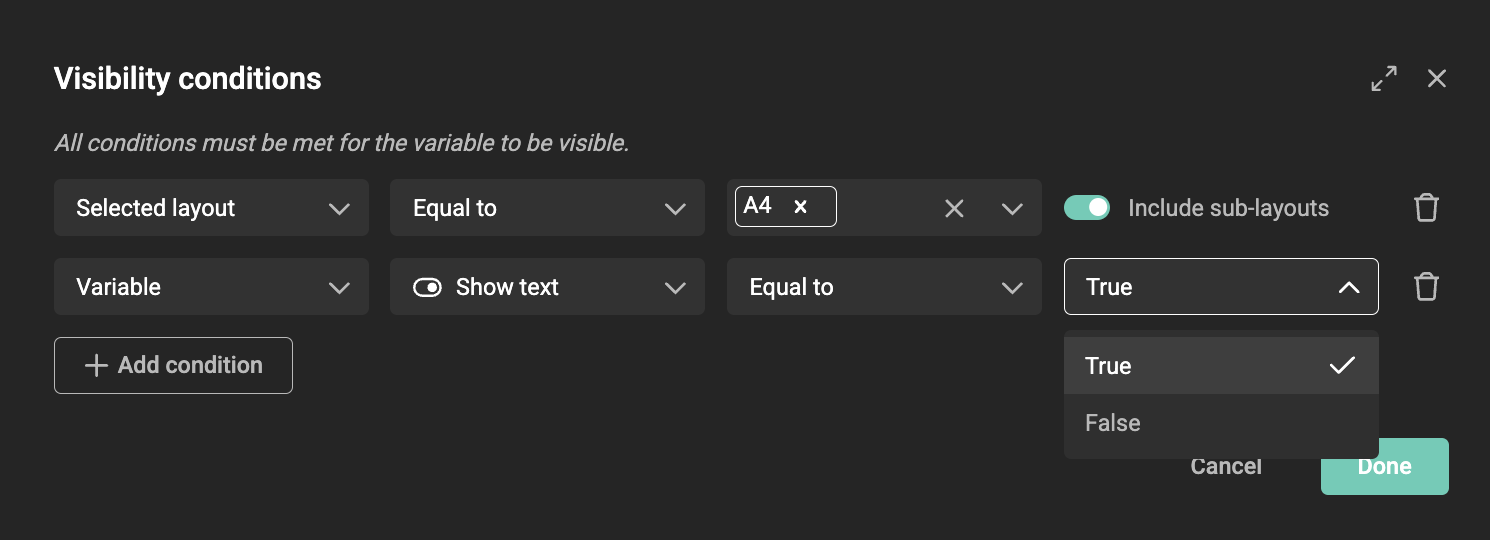

Click + Add Condition and define the criteria that must be met for the variable to be visible.
Deprecated in Actions
|
Deprecated Action: Visibility can also be controlled via Actions (with or without Genie). If you use SetVisible in an Action, it will ❌ override and remove ❌ the visibility conditions. Before making the document available to end users, ensure that:
|

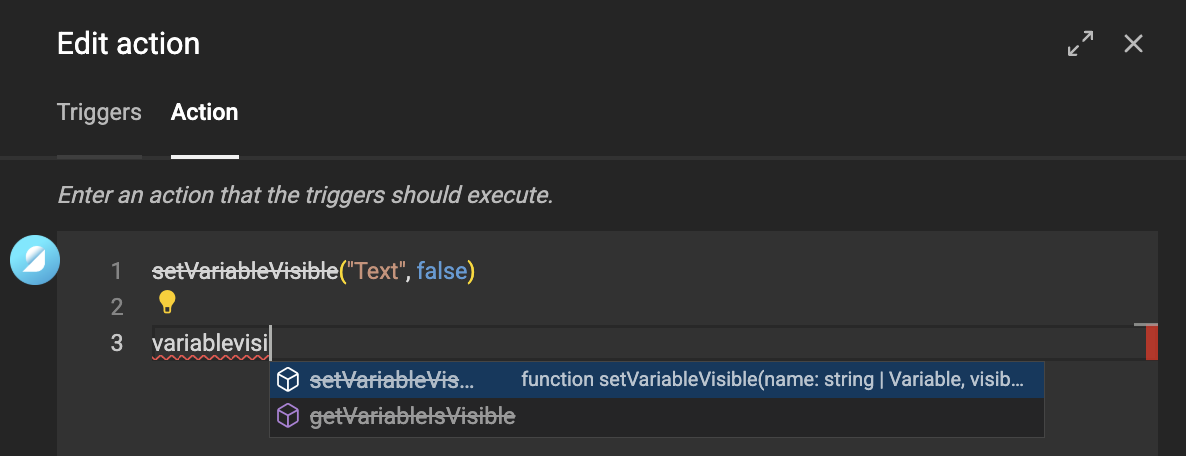

The Action Editor will display SetVisible as ~~strikethrough~~ to indicate that it is deprecated. Hovering over the function will also display a deprecated warning.
